TL875 off-highway dump truck is the most popular series of 6*4 mining dump truck designed and manufactured by Tonly.
In the same working condition, TL875 off-highway dump truck owns higher return on investment compared with Rigid Dump Trucks such as Komatsu HD465, Belaz 7555E and CAT 773.
No.1 Market share of 6*4 Mining Dump Trucks in China and the possessing capacity is over 33,000 units in the world.
Product

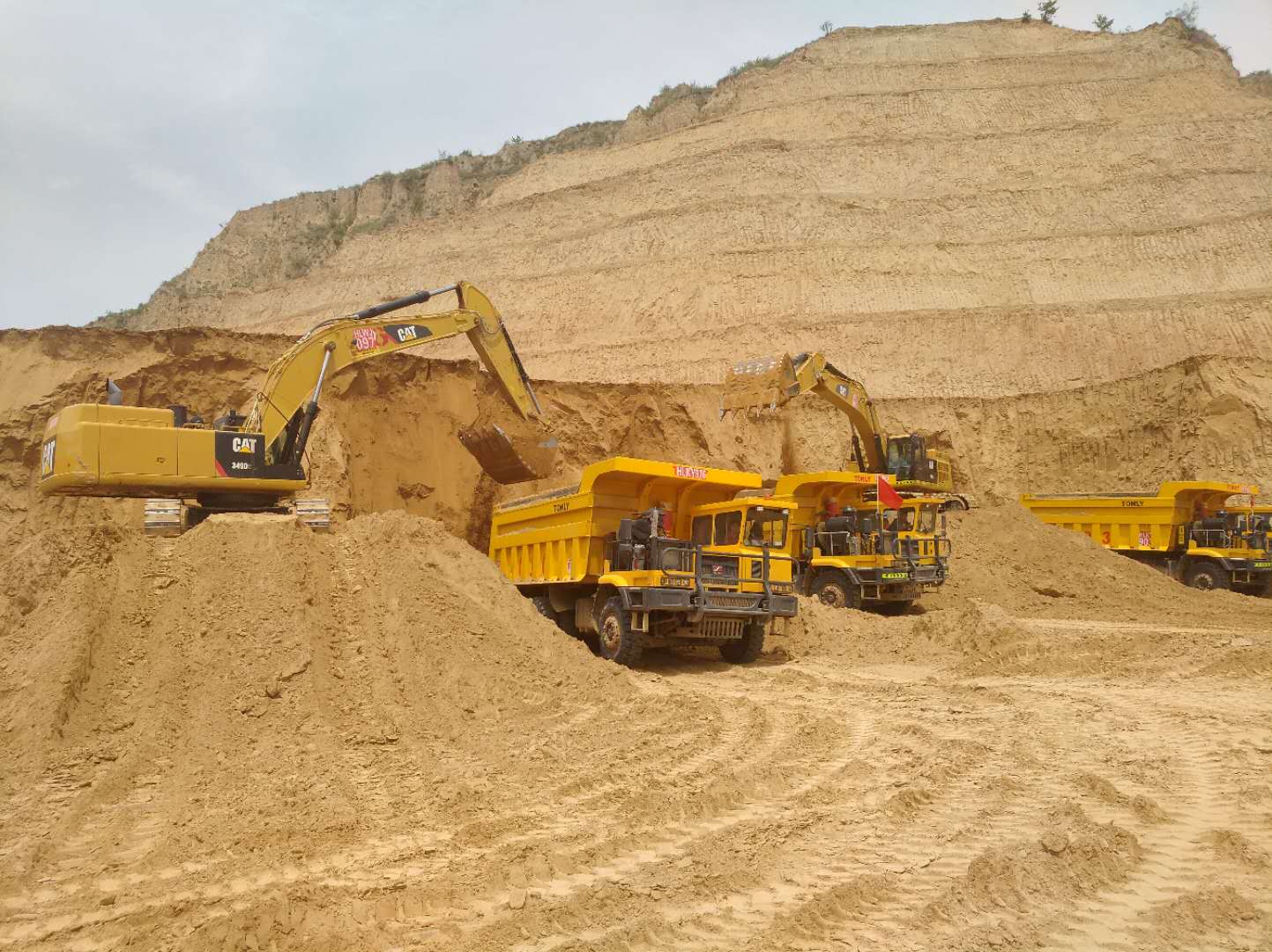

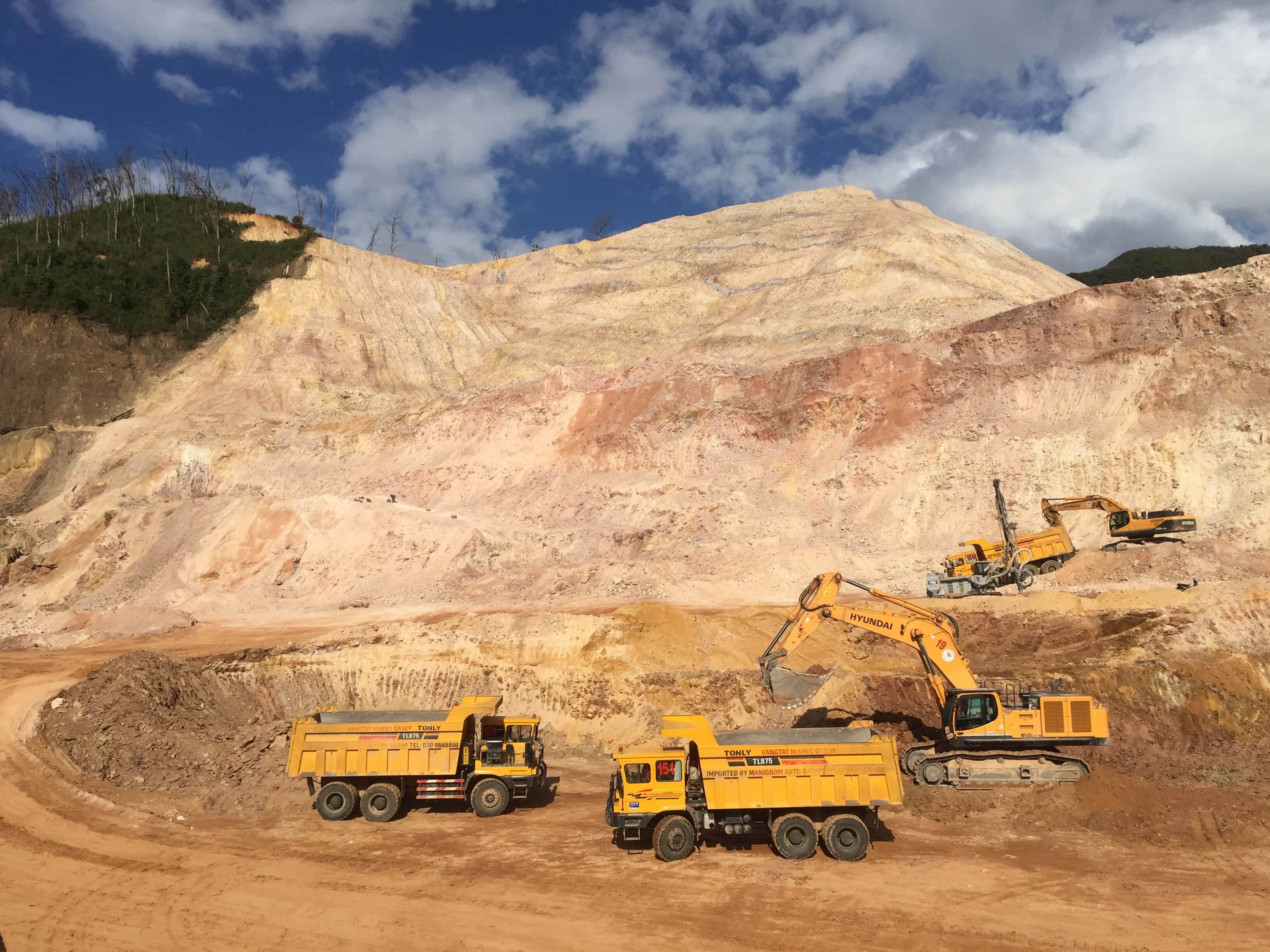

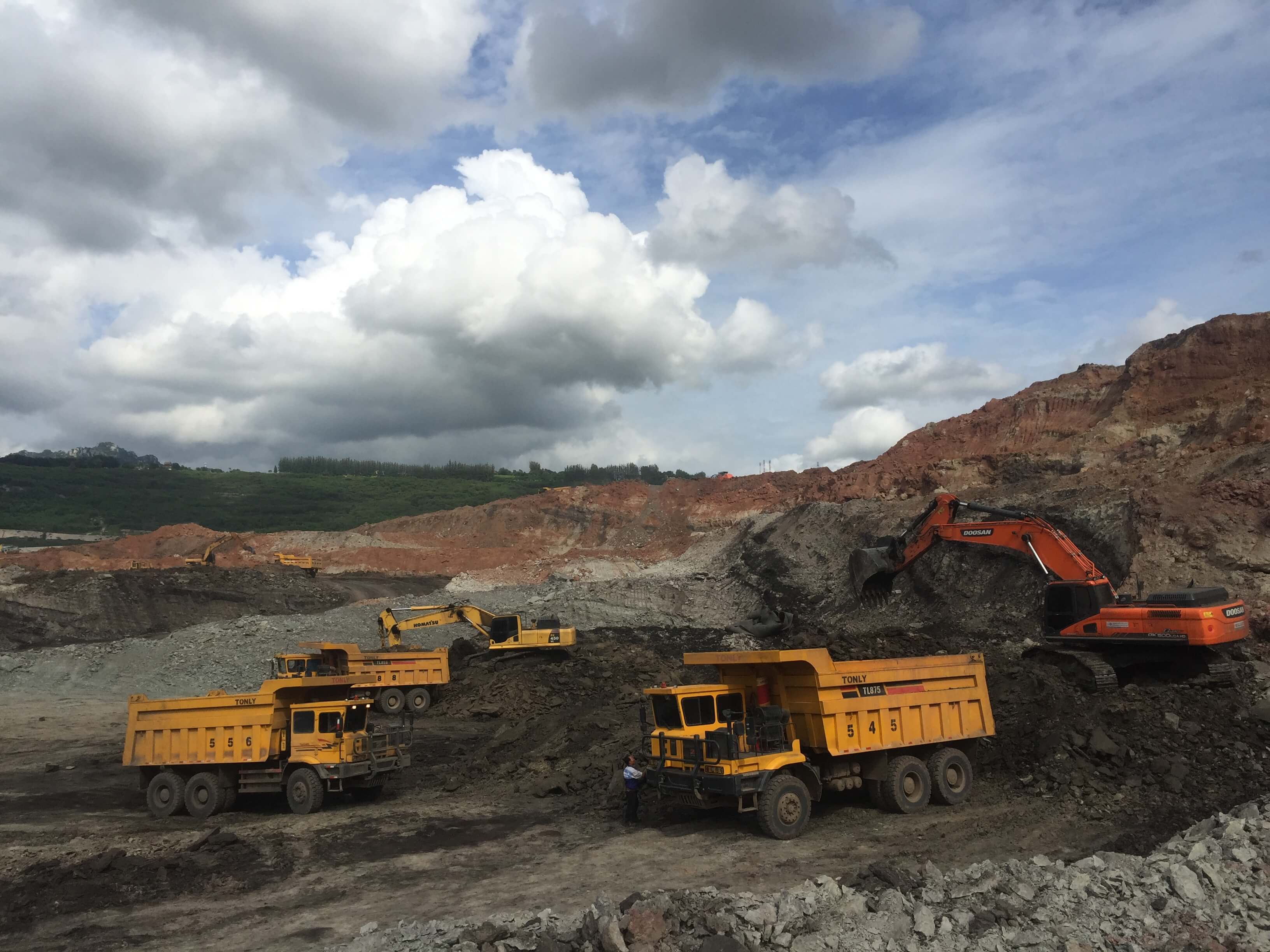

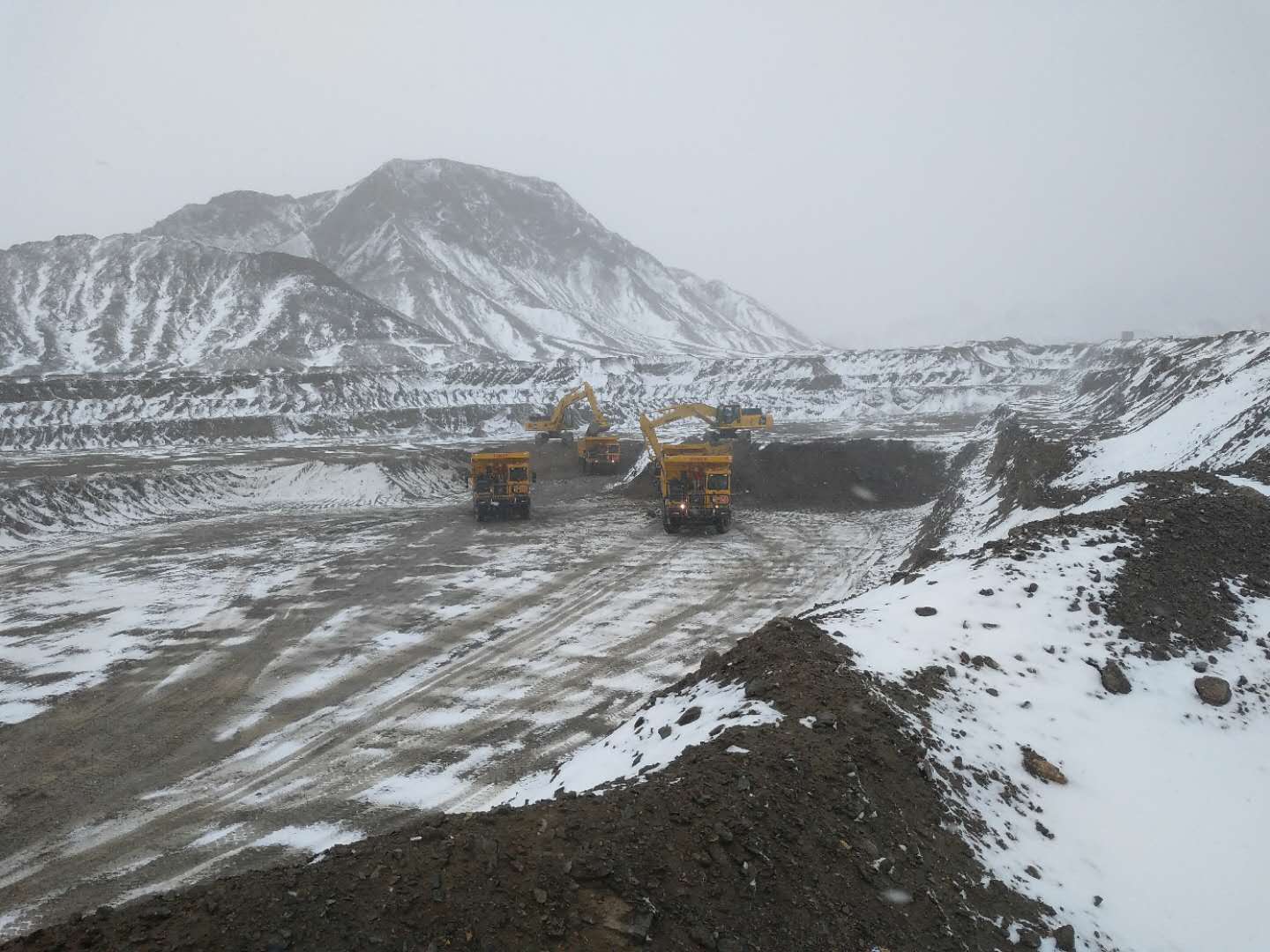

FeaturesTL875 is efficient transportation equipment for large and medium-sized open-pit mines.
TL875 has stable performance, reliable quality, attendance rate of more than 90% , and high comprehensive benefits.
TL875 has won “Market Performance Gold Award” in the construction machinery industry.
Technical
Parameters| Overall parameters | Model | TL875B | TL875K |
| Brand | Tonly | ||
| Drive mode | 6*4 | 6*4 | |
| GVW (t) | 90 | 90 | |
| Rated payload (t) | 60 | 60 | |
| Kerb weight (t) | 30 | 30 | |
| Dimensions (mm) | 9150×3670×3975 | 9150×3670×3975 | |
| Wheelbase (mm) | 3775+1550 | 3775+1550 | |
| Wheel track (mm) | 2680/2500 | 2680/2500 | |
| Minimum ground clearance (mm) | 385 | 385 | |
| Minimum turning radius (m) | 11 | 11 | |
| Maximum height of bucket lift (mm) | 7830 | 7830 | |
| Maximum angle of bucket lift (°) | 50 | 50 | |
| Loading height (mm) | 3975 | 3975 | |
| Braking distance (m) | 14 | 14 | |
| Maximum climbing degree (%) | ≥32 | ≥35 | |
| Maximum speed (km/h) | 40 | 40 | |
| Engine | Model | WP12G430E310 | WP12G460E310 |
| Manufacturer / Country | Weichai/China | ||
| Input torque (N·m) | 430/316 | 460/338 | |
| Transmission | Model | 7DS180 | 7DS220 |
| Manufacturer / Country | Fast/China | ||
| Input torque (N·m) | 1800 | 2200 | |
| Axle | Manufacturer / Country | Hande/China | |
| Load/T | 20+35+35 | 20+35+35 | |
| Tires / Rims | Tire model | 14.00-25 | 14.00-25 |
| Rim size | 10.0/2.0-25 | 10.0/2.0-25 | |
| Container | Base plate material/thickness (mm) | NM400/16 | NM400/16 |
| Rear plate material/thickness (mm) | NM400/12 | NM400/12 | |
| Front plate material/thickness (mm) | T700/10 | T700/10 | |
| Side plate material/thickness (mm) | T700/10 | T700/10 | |
| Container volume (m³) | 30 | 30 | |
| Hydraulic system | Model | FC179 | FC179 |
| Manufacturer / Country | HYVA/China | ||
| Steering device | Dual steering | Dual steering | |
| Lifting time (s) | 25 | 25 | |
| Descent time (s) | 25 | 25 | |
| Weight distribution | Empty load | ||
| Front axle (kg) | 10000 | 10000 | |
| Rear axle (kg) | 20000 | 20000 | |
| Total weight (50% fuel) (kg) | 30000 | 30000 | |
| Loaded | |||
| Front axle (kg) | 20000 | 20000 | |
| Rear axle (kg) | 70000 | 70000 | |
| Total weight (kg) | 90000 | 90000 | |
