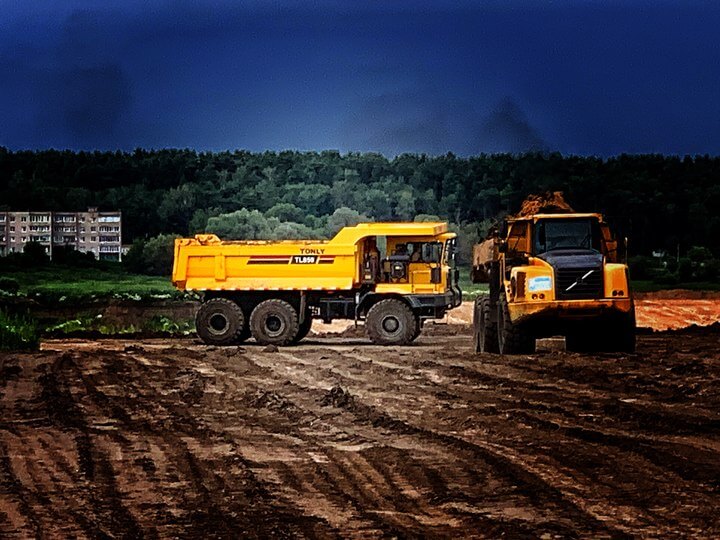

TL859 is a special model for muddy, frozen, sandy and other harsh working conditions.
One dump truck for muddy, frozen, sandy working conditions
Solid and reliable, stable and efficient

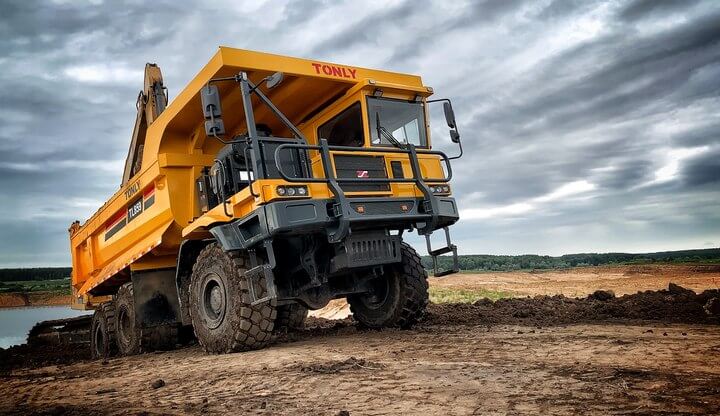

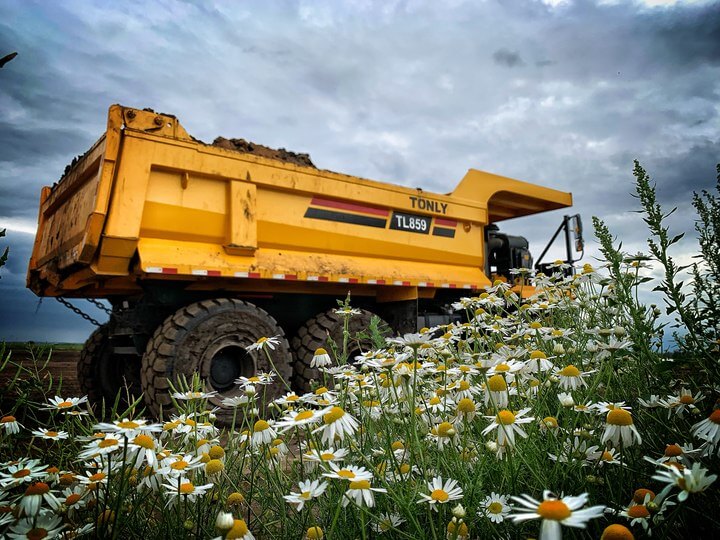

TL859 off-road dump Truck
Technical
Parameters
| Overall parameters | Model | TL859 |
| Brand | Tonly | |
| Drive mode | 6×6 | |
| GVW (t) | 69 | |
| Rated payload (t) | 40 | |
| Kerb weight (t) | 29 | |
| Dimensions (mm) | 9225×3512×3965 | |
| Wheelbase (mm) | 3710+1800 | |
| Wheel track (mm) | 2581/2588 | |
| Minimum ground clearance (mm) | 530 | |
| Minimum turning radius (m) | 12 | |
| Maximum height of bucket lift (mm) | 9029 | |
| Maximum angle of bucket lift (°) | 52 | |
| Loading height (mm) | 3632 | |
| Braking distance (m) | 15 | |
| Maximum climbing degree (%) | 36 | |
| Maximum speed (km/h) | 50 | |
| Engine | Model | WP12G460E310 |
| Manufacturer / Country | Weichai/China | |
| Power (hp/kw) | 460/338 | |
| Transmission | Model | FC6A210DPRT |
| Manufacturer / Country | Xian FC/China | |
| Input torque (N·m) | 2100 | |
| Axle | Manufacturer / Country | Hande/China |
| Load/T | 18+23+23 | |
| Tires / Rims | Tire model | Front 23.5R25 rear 750/65R25 |
| Rim size | Front 19.5-25 rear 24.0-25 | |
| Container | Base plate material/thickness (mm) | T700/16 |
| Rear plate material/thickness (mm) | T700/10 | |
| Front plate material/thickness (mm) | T700/10 | |
| Side plate material/thickness (mm) | T700/10 | |
| Container volume (m³) | 24 | |
| Hydraulic system | Model | FC157 |
| Manufacturer / Country | HYVA/China | |
| Steering device | Fully hydraulic steering | |
| Lifting time (s) | 23 | |
| Discharge time (s) | 23 | |
| Weight distribution | Empty load | |
| Front axle (kg) | 10000 | |
| Rear axle (kg) | 16000 | |
| Total weight (50% fuel) (kg) | 26000 | |
| Loaded | ||
| Front axle (kg) | 16000 | |
| Rear axle (kg) | 50000 | |
| Total weight (kg) | 66000 | |
