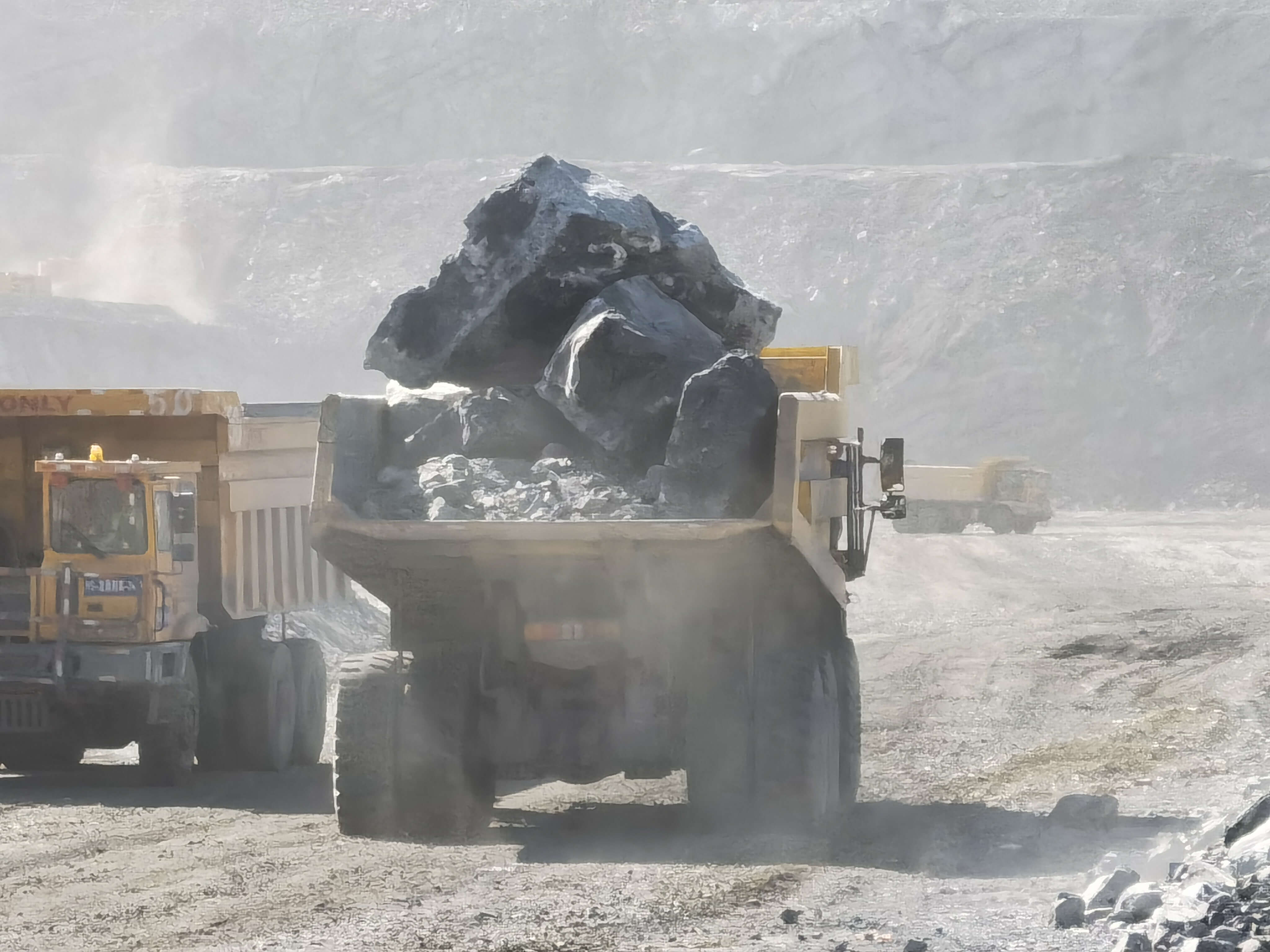

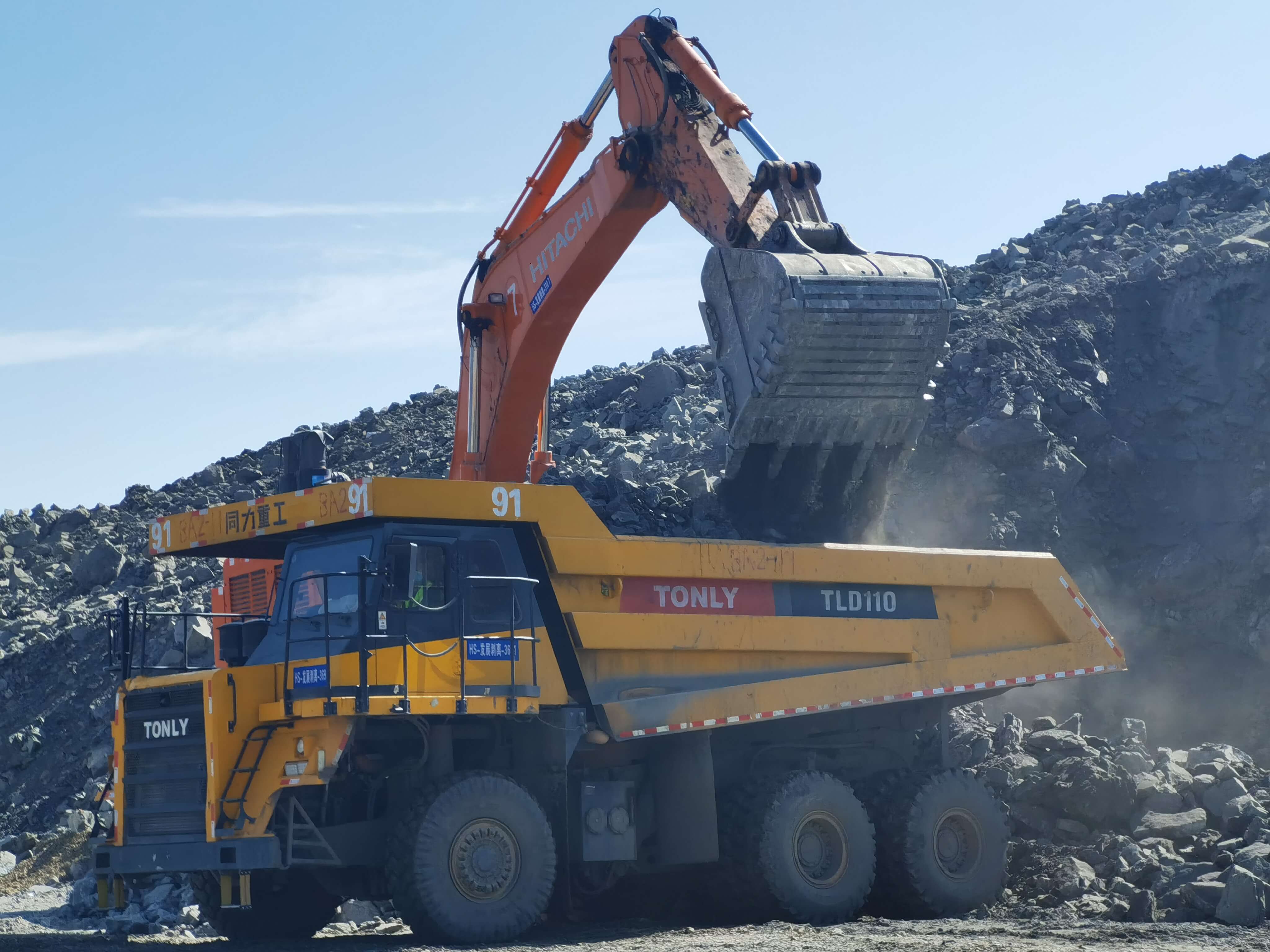

China’s first double-axle drive mining dump truck applied to various large open-pit mines.
Meet the needs of large-scale mining equipment ,large loading capacity,strong transport circulation capacity.
Hydro pneumatic suspension improves the service life and reliability of the chassis.
T
Product

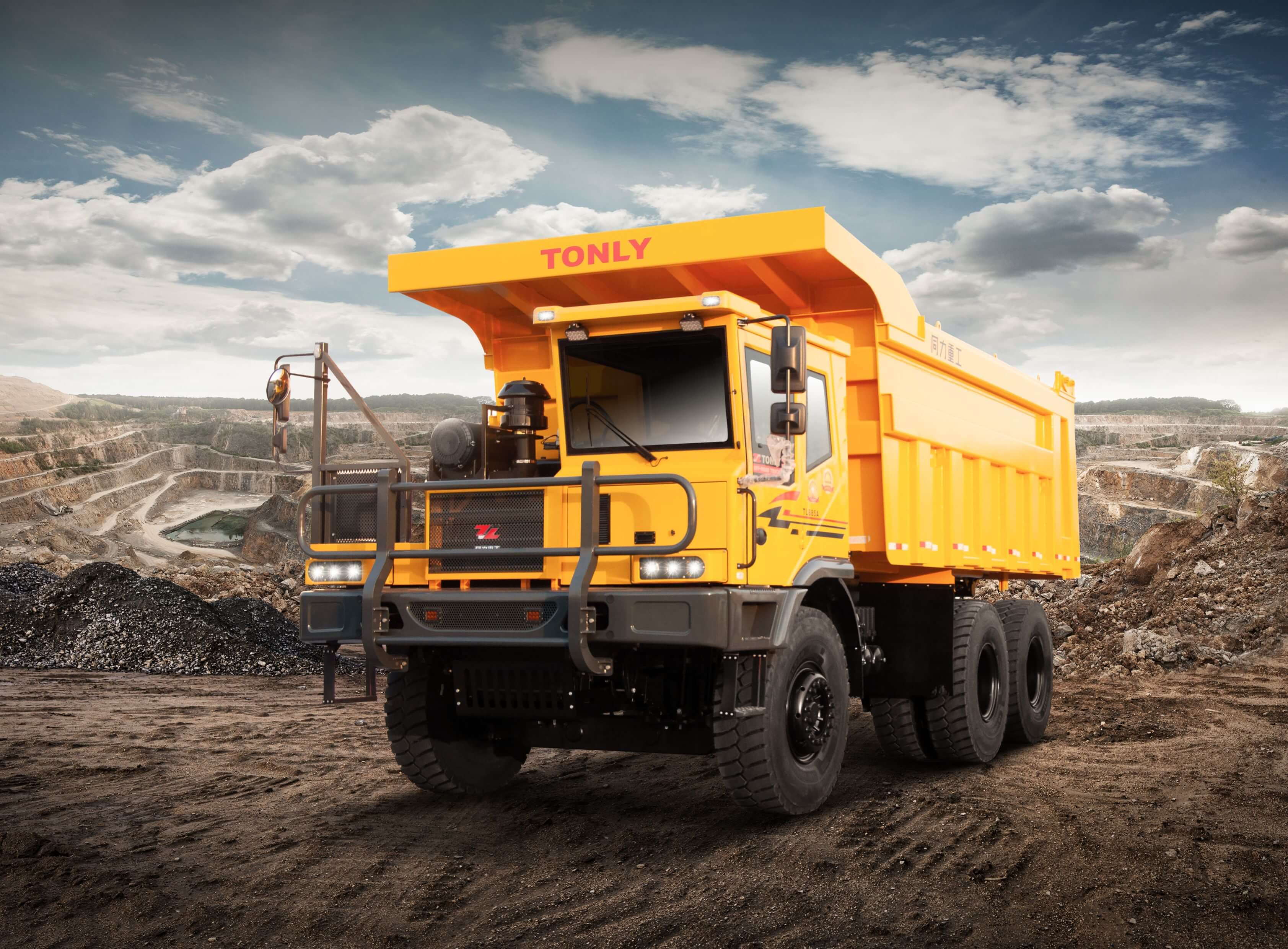

FeaturesTLD125 rigid dump truck is designed to load 70T-80T, which fills the market gap between 60T and 90T of China domestic mining dump truck.

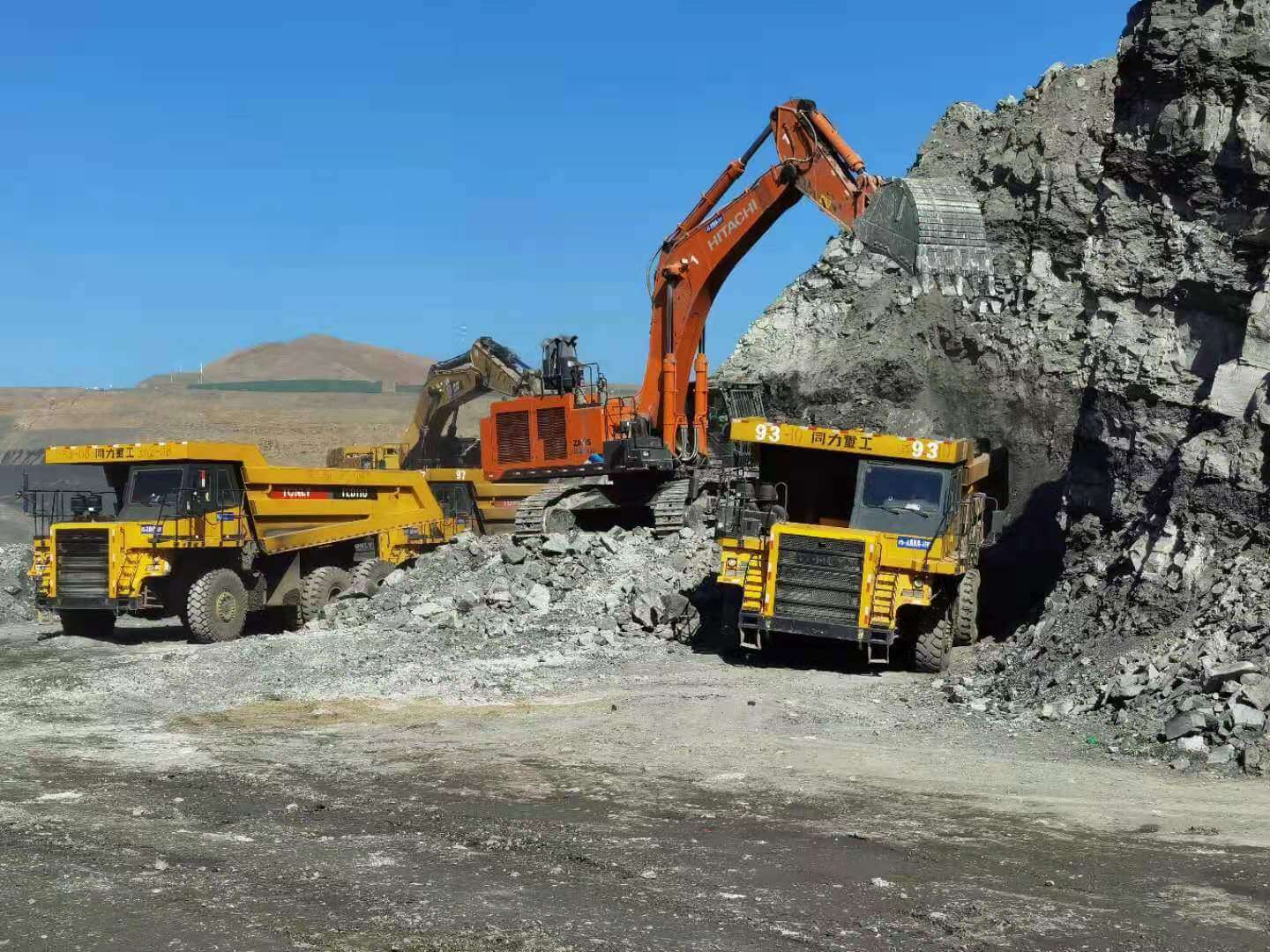

TLD125 rigid dump truckis mainly used in the mining and transportation of large-scale open pit mines, and can meet the development needs of large-scale open-pit mine equipment.
The service life time of TLD125 rigid dump truck is more than 8 years.
Technical
Parameters| Overall parameters | Model | TLD125 |
| Brand | Tonly | |
| Drive mode | 6*4 | |
| GVW (t) | 126 | |
| Rated payload (t) | 80 | |
| Kerb weight (t) | 46 | |
| Dimensions (mm) | 11100*4443*4475 | |
| Wheelbase (mm) | 4300+1900 | |
| Wheel track (mm) | 2330(Main pin)/3052 | |
| Minimum ground clearance (mm) | 440 | |
| Minimum turning radius (m) | 12 | |
| Maximum height of bucket lift (mm) | 10400 | |
| Maximum angle of bucket lift (°) | 54 | |
| Loading height (mm) | 5170 | |
| Braking distance (m) | 23 | |
| Maximum climbing degree (％) | 30 | |
| Maximum speed (km/h) | 35 | |
| Engine | Model | YCK16775-T300 |
| Manufacturer/Country | Guangxi YC/China | |
| Power (hp/kw) | 775/570 | |
| Transmission | Model | 8DS260 |
| Manufacturer/Country | Fast/China | |
| Input torque (N•m) | 2600 | |
| Axle | Manufacturer/Country | Shandong PX/China |
| Load/T | 25+45+45 | |
| Tires/Rims | Tire model | 18.00R25 |
| Rim size | 13.00/2.5-25 | |
| Container | Base plate material/thickness (mm) | NM400/18 |
| Front plate material/thickness (mm) | T700/12 | |
| Side plate material/thickness (mm) | T700/12 | |
| Container volume (m³) | 45/52 | |
| Hydraulic system | Model | FE202 |
| Manufacturer/Country | HYVA/China | |
| Steering device | Fully hydraulic steering | |
| Container lift time (s) | 26 | |
| Container descent time (s) | 25 | |
| Weight distribution | Empty load | |
| Front axle (kg) | 18500 | |
| Rear axle (kg) | 27500 | |
| Total weight (50％fuel) (kg) | 46000 | |
| Loaded | ||
| Front axle (kg) | 25000 | |
| Rear axle (kg) | 101000 | |
| Total weight (kg) | 126000 | |
