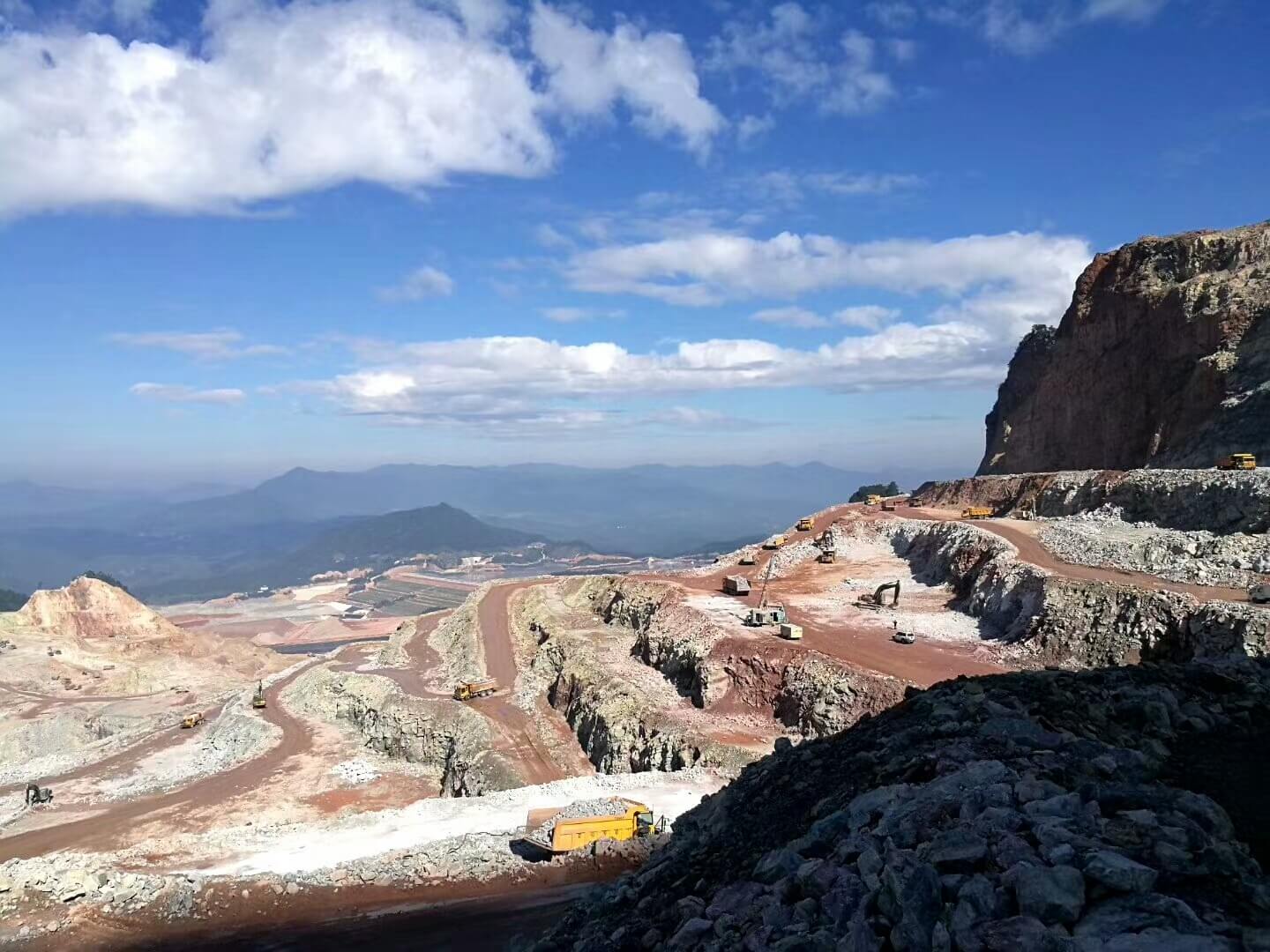

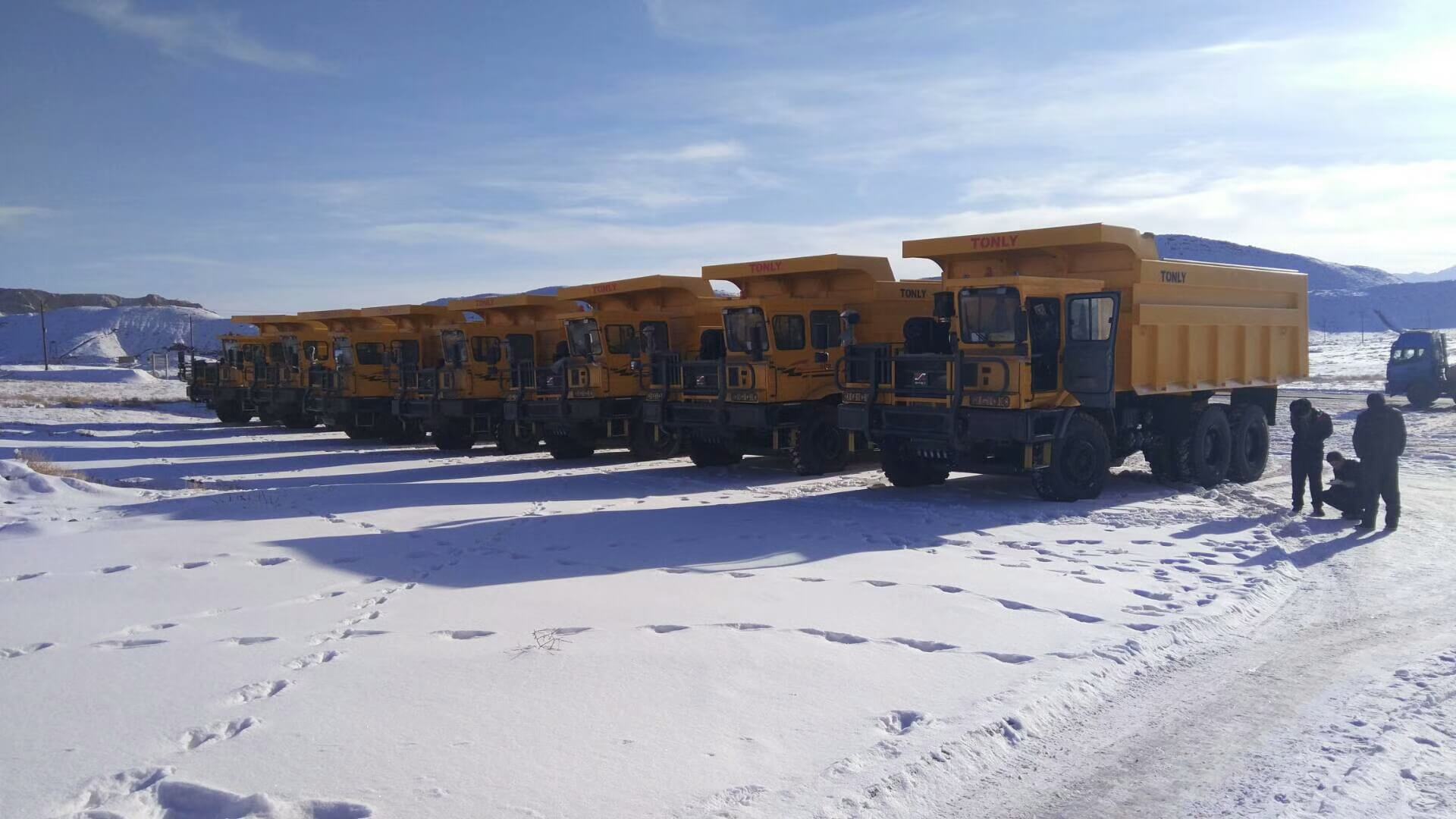

TL885A, load capacity can reach more than 70 tons, it’s our largest payload mining dump truck currently, first choice for the large open-pit to achieve high efficiency transportation.
Product
Features
With new upgraded axle,the truck has great load capacity and high comprehensive transportation benefits.
The core patented technology of TL885 is of a flexible structre frame,which has strong absorption and attenuation shock ability,thereby significantly reducing the failure rate of truck chassis.
Full hydraulic steering and emergency steering system can be more light,reliable and safe.
Technical
Parameters
| Overall parameters | Model | TL885A |
| Brand | Tonly | |
| Drive mode | 6*4 | |
| GVW (t) | 105 | |
| Rated payload (t) | 70 | |
| Kerb weight (t) | 35 | |
| Dimensions (mm) | 9350*3750*4234 | |
| Wheelbase (mm) | 3775+1750 | |
| Wheel track (mm) | 2838/2626 | |
| Minimum ground clearance (mm) | 400 | |
| Minimum turning radius (m) | 11 | |
| Maximum height of bucket lift (mm) | 8320 | |
| Maximum angle of bucket lift (°) | 50 | |
| Loading height (mm) | 4234 | |
| Braking distance (m) | 17 | |
| Maximum climbing degree (％) | ≥32 | |
| Maximum speed (km/h) | 40 | |
| Engine | Model | WP13G530E310 |
| Manufacturer/Country | Weichai/China | |
| Power (hp/kw) | 530/390 | |
| Transmission | Model | 8DS240A |
| Manufacturer/Country | Fast/China | |
| Input torque (N•m) | 2400 | |
| Axle | Manufacturer/Country | Hande/China |
| Load/T | 25+40+40 | |
| Tires/Rims | Tire model | 16.00-25 |
| Rim size | 11.25/2.0-2.5 | |
| Container | Base plate material/thickness (mm) | NM400/16 |
| Rear plate material/thickness (mm) | NM400/12 | |
| Front plate material/thickness (mm) | T700/10 | |
| Side plate material/thickness (mm) | T700/10 | |
| Container volume (m³) | 36 | |
| Hydraulic system | Model | FC191 |
| Manufacturer/Country | HYVA/China | |
| Steering device | Fullu hydraulic steering | |
| Lifting time (s) | 27 | |
| Descent time (s) | 27 | |
| Weight distribution | Empty load | |
| Front axle (kg) | 15000 | |
| Rear axle (kg) | 20000 | |
| Total weight (50％fuel) (kg) | 35000 | |
| Loaded | ||
| Front axle (kg) | 25000 | |
| Rear axle (kg) | 80000 | |
| Total weight (kg) | 105000 | |
