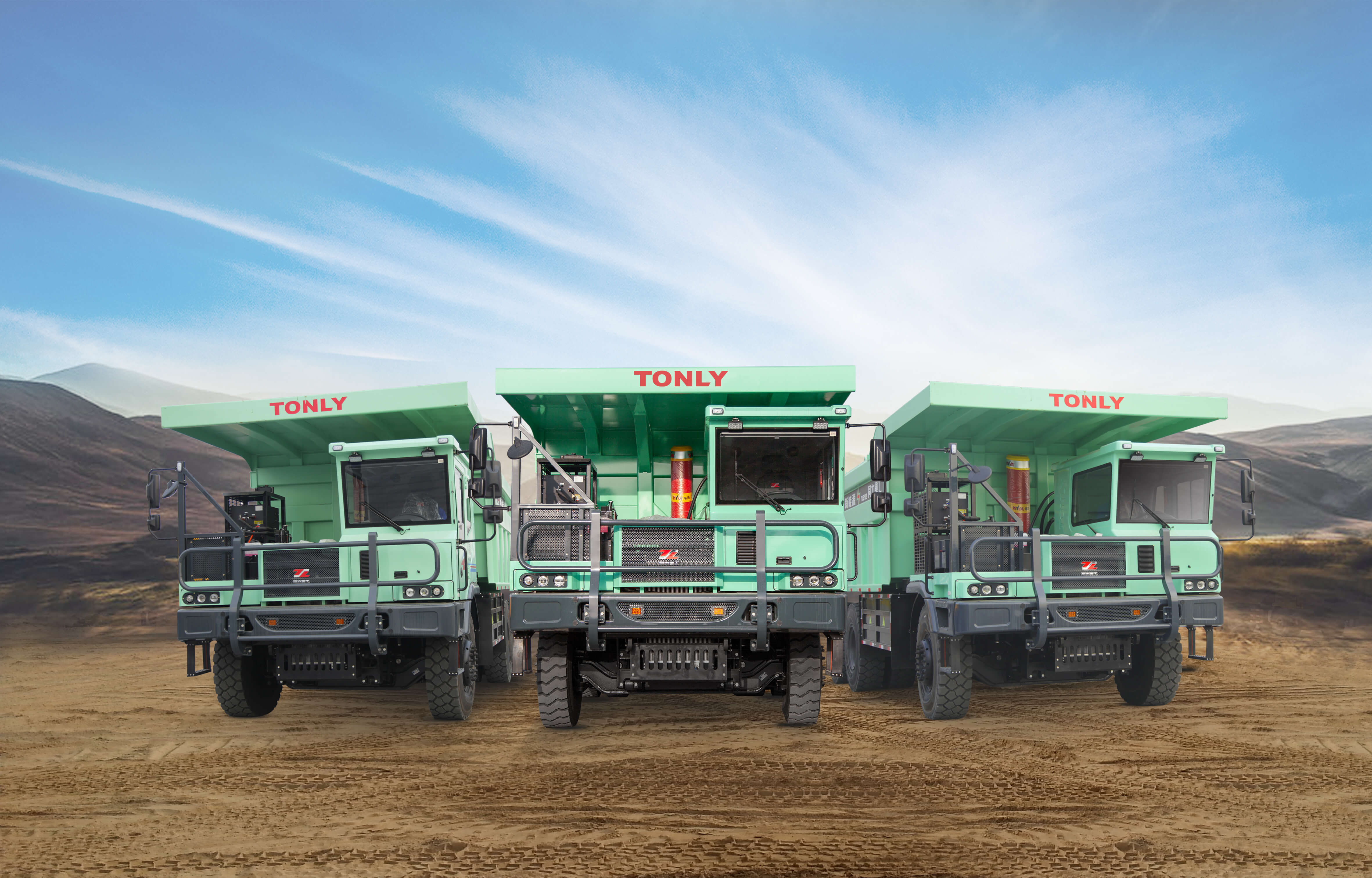

TLE series pure electric mining dump truck is a zero-emission, zero-pollution, short-distance engineering transportation mining dump truck developed by Tonly in response to the national energy-saving, emission-reduction and environmental protection requirements, and integrating years of research and development results of new energy mining dump truck.
T
Product
FeaturesDue to heavy-load downhill energy recovery, 70-95% of cost can be saved compared to fuel vehicles.
With mature chassis technology cooperating with the advanced electric system in the industry, the quality is stable and the performance is reliable.
Adopt lithium iron phosphate battery, with high charged power, long range and large energy recovery space.
Technical
Parameters
| Overall parameters | Model | TLE90B | TLE105 |
| Brand | Tonly | ||
| Drive mode | 6*4 | 6*4 | |
| GVW (t) | 94 | 110 | |
| Rated payload (t) | 60 | 70 | |
| Kerb weight (t) | 34 | 40 | |
| Dimensions (mm) | 9560*3750*3995 (reference) | 9984*3750*4250 (reference) | |
| Wheelbase (mm) | 4175+1550 | 4275+1750 | |
| Wheel track (mm) | 2690/2468 | 2760/2630 | |
| Minimum ground clearance (mm) | 315 | 375 | |
| Minimum turning radius (m) | 11 | 11.4 | |
| Maximum angle of bucket lift (°) | 50 | 50 | |
| Loading height (mm) | 3640 | 3840 | |
| Braking distance (m) | 16 | 17 | |
| Maximum climbing degree (％) | 35 | 35 | |
| Maximum speed (km/h) | 45 | 45 | |
| Drive motor | Model | EM430-600 | EM430-600 |
| Manufacturer/Country | Fast/China | ||
| Rated power (kw) | 430/316 | 430/316 | |
| Transmission | Model | 4E300 | 4E300 |
| Manufacturer/Country | Fast/China | ||
| Transmission type | AMT | AMT | |
| Axle | Manufacturer/Country | Hande/China | |
| Load/T | 20+35+35 | 25+40+40 | |
| Tires/Rims | Tire model | 14.00R25 | 16.00R25 |
| Rim size | 10.0-25 | 11.0-25 | |
| Container | Base plate material/thickness (mm) | 16 | 16 |
| Rear plate material/thickness (mm) | 10 | 10 | |
| Front plate material/thickness (mm) | 10 | 10 | |
| Side plate material/thickness (mm) | 10 | 10 | |
| Container volume (m³) | 33 | 40 | |
| Steering system | Model | Fully hydraulic steering | Fully hydraulic steering |
| Manufacturer/Country | Zhenjiang Hydraulics/China | ||
| Lifting system | Manufacturer/Country | HYVA/China | |
| Container lift time (s) | <35 | <35 | |
| Container descent time (s) | <30 | <30 | |
| Weight distribution | Empty load | ||
| Front axle (kg) | 12000 | 13447 | |
| Rear axle (kg) | 22000 | 26553 | |
| Total weight (kg) | 34000 | 40000 | |
| Loaded | |||
| Front axle (kg) | 20700 | 28483 | |
| Rear axle (kg) | 73300 | 81517 | |
| Total weight (kg) | 94000 | 110000 | |
