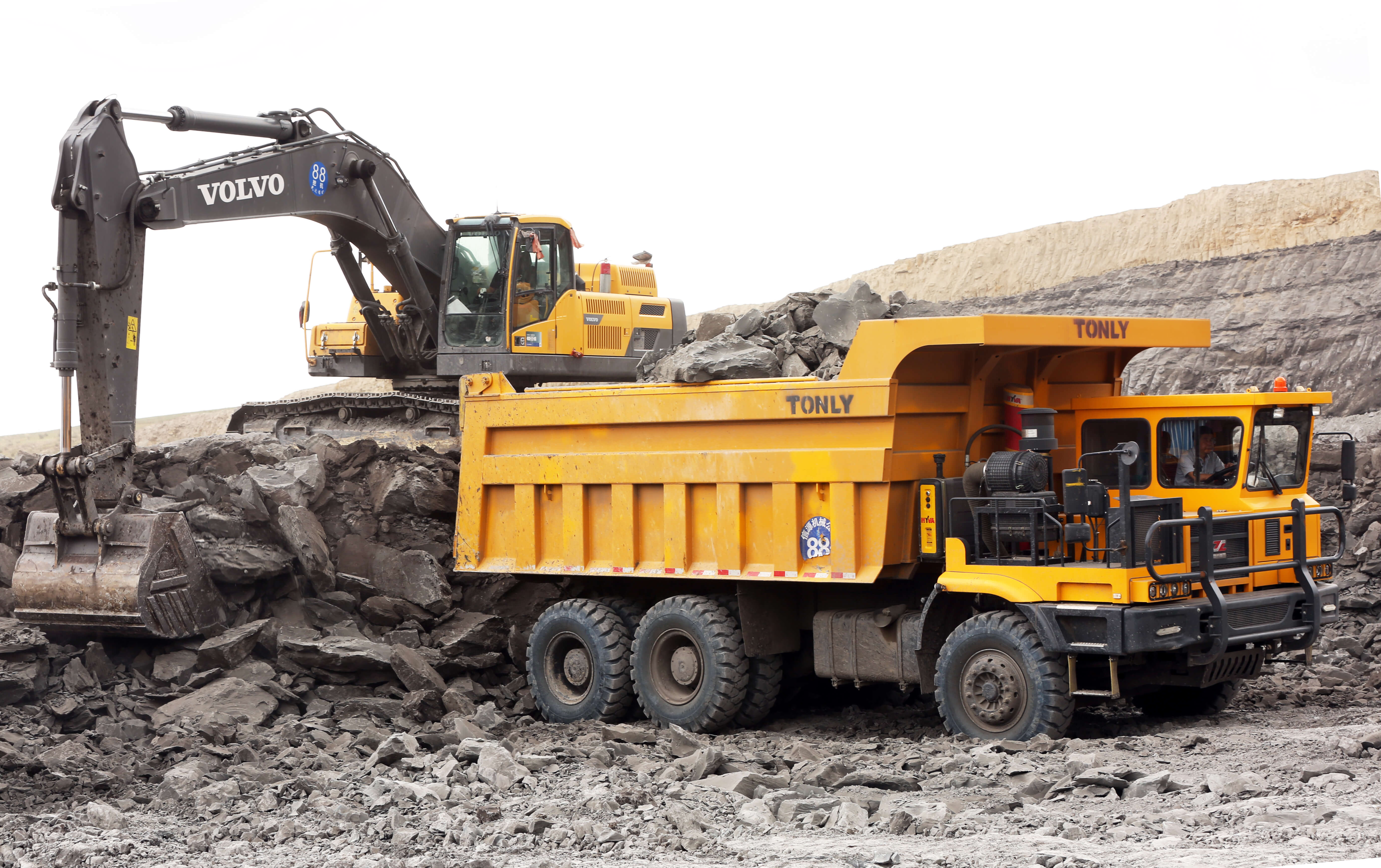

TLD96 series mining dump trucks integrate more than 80 patents,pass through the whole-life validation, high market share and the best market performance in the industry, it’s the reliable and cost-effective products.
Product
Features

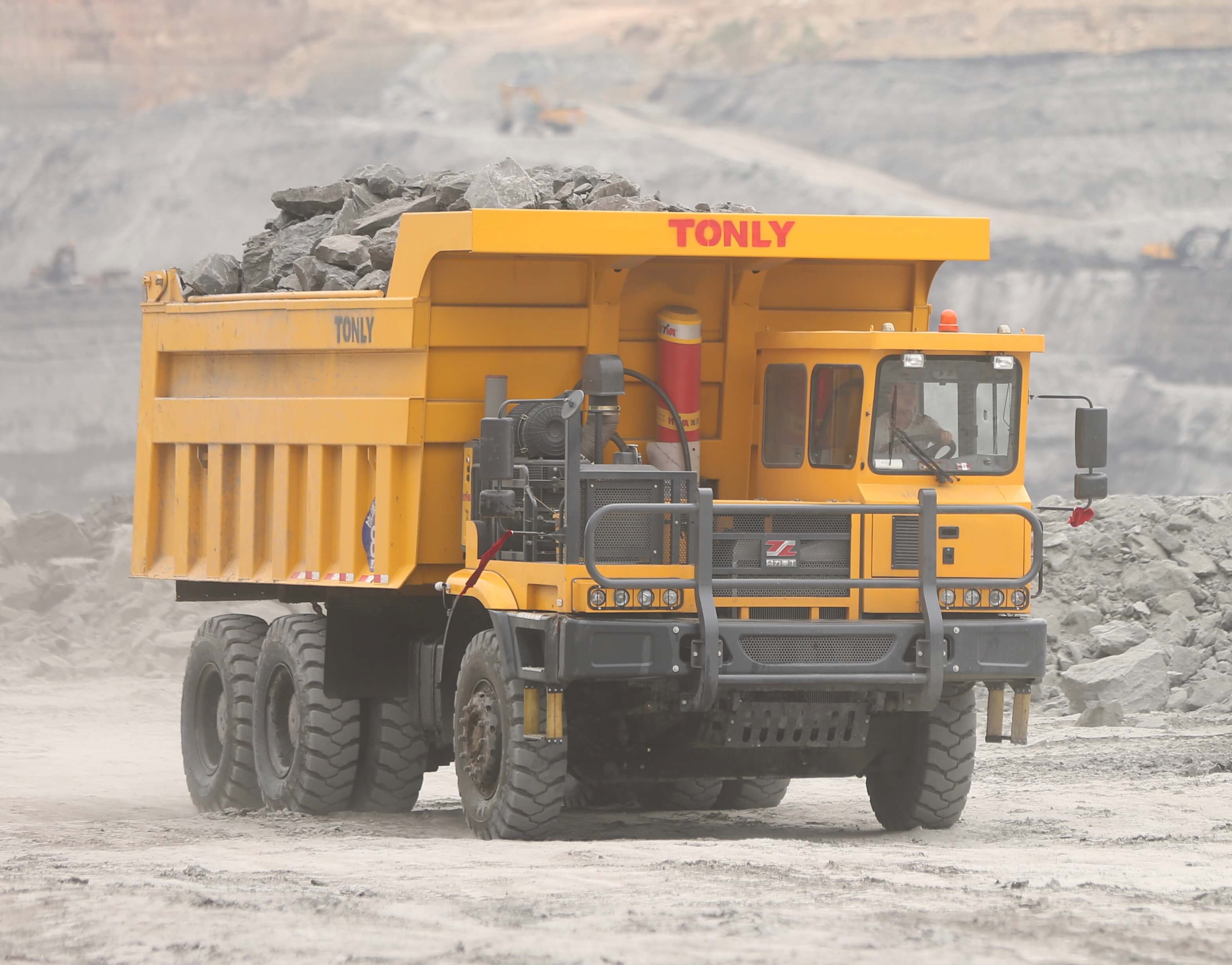

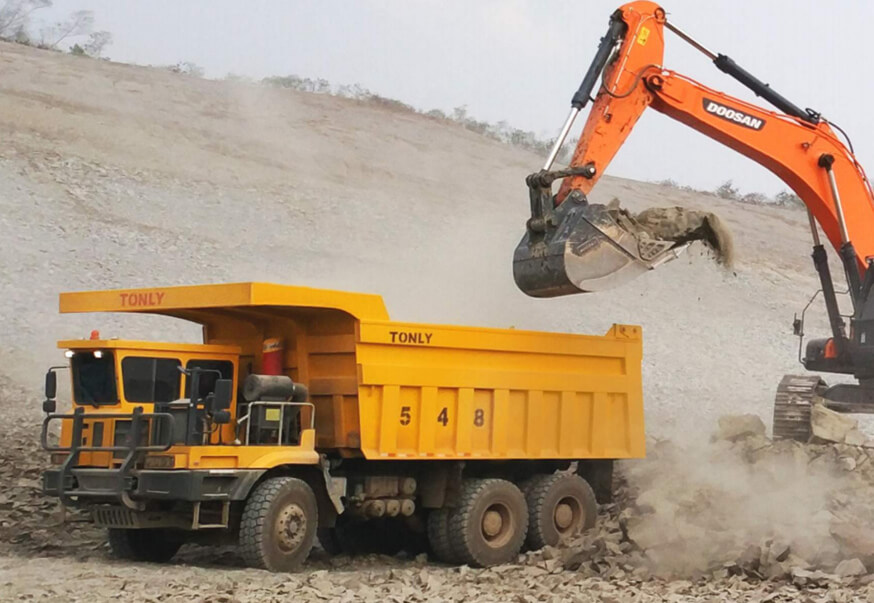

TLD96 can operate under heavy working conditions.
TLD96 adopts the new plate spring structure with the higher bearing capacity.
The complete dump truck is designed according to the standards with more economic operations.
TLD96 is optimized and designed according to different fields with the stronger region coverage.
Technical
Parameters
| Overall parameters | Model | TLD96 |
| Brand | Tonly | |
| Drive mode | 6×4 | |
| GVW (t) | 105 | |
| Rated payload (t) | 70 | |
| Kerb weight (t) | 35 | |
| Dimensions (mm) | 9900×3670×4250 | |
| Wheelbase (mm) | 4075+1750 | |
| Wheel track (mm) | 2838/2626 | |
| Minimum ground clearance (mm) | 400 | |
| Minimum turning radius (m) | 11 | |
| Maximum height of bucket lift (mm) | 8320 | |
| Maximum angle of bucket lift (°) | 50 | |
| Loading height (mm) | 4234 | |
| Braking distance (m) | 17 | |
| Maximum climbing degree (%) | ≥30 | |
| Maximum speed (km/h) | 40 | |
| Engine | Model | WP13G530E310 |
| Manufacturer / Country | Weichai/China | |
| Power (hp/kw) | 530/390 | |
| Transmission | Model | 4800 ORS |
| Manufacturer / Country | Allison/USA | |
| Axle | Manufacturer / Country | Hande/China |
| Load/T | 25+40+40 | |
| Tires / Rims | Tire model | 16.00-25 |
| Rim size | 11.25/2.0-25 | |
| Container | Base plate material/thickness (mm) | NM400/16 |
| Rear plate material/thickness (mm) | NM400/12 | |
| Front plate material/thickness (mm) | T700/10 | |
| Side plate material/thickness (mm) | T700/10 | |
| Container volume (m³) | 36 | |
| Hydraulic system | Model | FC191 |
| Manufacturer / Country | HYVA/China | |
| Steering device | Fully hydraulic steering | |
| Lifting time (s) | 27 | |
| Discharge time (s) | 27 | |
| Weight distribution | Empty load | |
| Front axle (kg) | 15000 | |
| Rear axle (kg) | 20000 | |
| Total weight (50% fuel) (kg) | 35000 | |
| Loaded | ||
| Front axle (kg) | 25000 | |
| Rear axle (kg) | 80000 | |
| Total weight (kg) | 105000 | |
